Connectors in SMT and Press-fit Technology
for the Automotive Industry

Sample Boxes for Connectors in the Automotive Industry

Combination Box for Automotive Connectors: Flexilink, One27, Zero8, Colibri

Not sure which connector is right for your application and which connector fits?
Our automotive sample box gives you an overview of which board-to-board connectors you can use for your application.

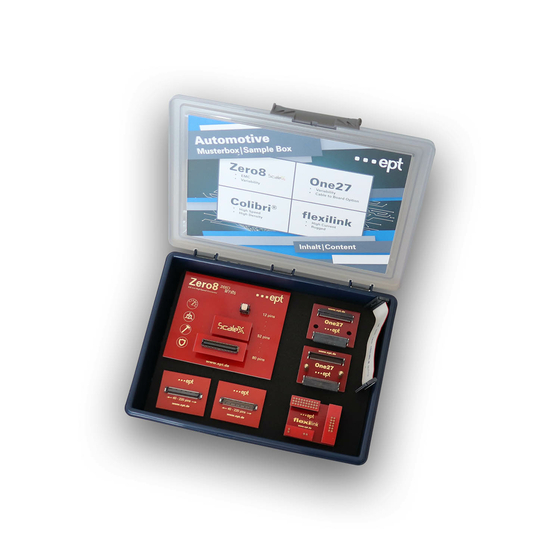

Kombi Musterbox ohne Hintergrund
Combination Sample Box Automotive
What’s inside:

Zero8
- SMT, with a pitch of 0.8 mm and board-to-board distance of 6 to 21 mm
- EMC: optimal signal protection
- Variability: Zero Limits, no limits for your application

One27
- SMT, with a pitch of 1.27 mm and board-to-board distance of 8 to 20 mm
- Variability: one size fits all, one solution for your application
- Cable to board option, individual cable types and lengths

Colibri
- SMT, 0.5 mm pitch, 5 or 8 mm board-to-board distance
- 16 Gbps highspeed for your COM Express application
- High density, low space

Flexilink
- Press-fit, with a pitch of 2.54 mm and board-to-board distance of 5 to 25 mm
- High current >10 A, high current rating due to one-piece connector system
- Rugged, fail-safe and heavy-duty PCB connections

One27 Automotive Connector Sample Box

Musterbox One27 ohne Hintergrund
Are you looking for a connector that offers the widest possible range of connection and mating variants featuring a small pitch and the greatest possible robustness?

Our SMT PCB connector does just that for numerous automotive applications.

Details of the One27 connector
- SMT, with a pitch of 1.27 mm and board-to-board distance of 8 to 20 mm
- Variability: one size fits all, one solution for your application
- Cable-to-board option, individual cable types and lengths

Zero8 Automotive Connector Sample Box

Musterbox Zero8 ohne Hintergrund
Are you looking for a shielded connector that is robust and features a particularly reliable contact technology, while still guaranteeing a data transfer rates of up to 16 Gbps?

Our Zero8 PCB connector product family with a pitch of 0.8 mm is designed for demanding automotive applications, offering the highest level of scalability.

Details of the Zero8 connector
- SMT, with a pitch of 0.8 mm and board-to-board distance of 6 to 21 mm
- EMC: optimal signal protection
- Variability: Zero Limits, no limits for your application
